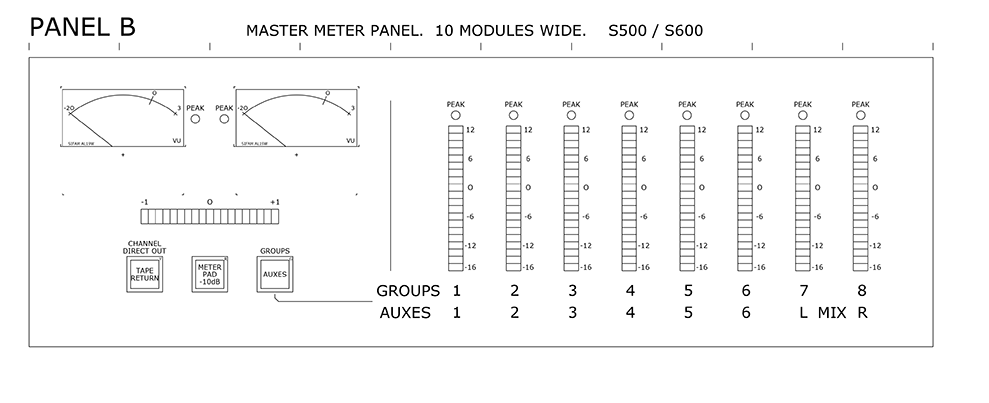

Panel B. Master Meter Panel, 10-modules wide. S500 & S600 consoles.

Left & Right Master meters are Sifam AL19 type. This is a small-format meter of around 40mm x 20mm size with rear illumination. • All other facilities are identical in operation to Panel A. • Group/Aux/Mix Meter facilities are as Panel A, however, the 8 meters are condensed closer together to allow them to fit in the available space
