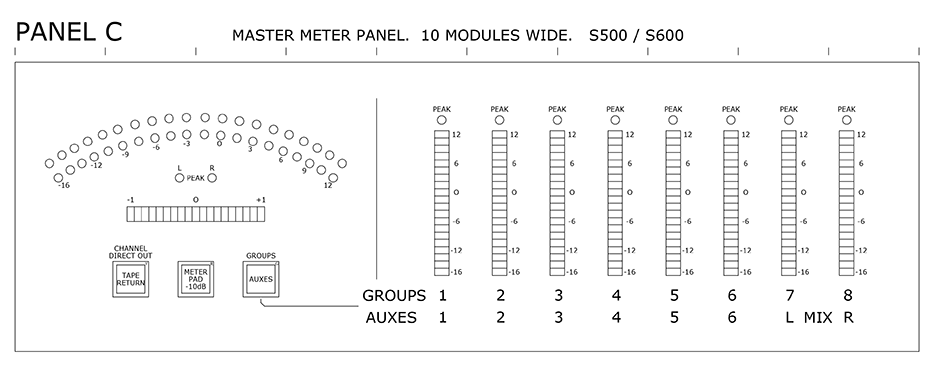

Panel C. Master Meter Panel, 10-modules wide. S500 & S600 consoles.

Left & Right Master meters are curved LED bargraphs with the same ballistic characteristics as the vertical LED level bargraphs. • All other facilities are identical in operation to Panel A.
