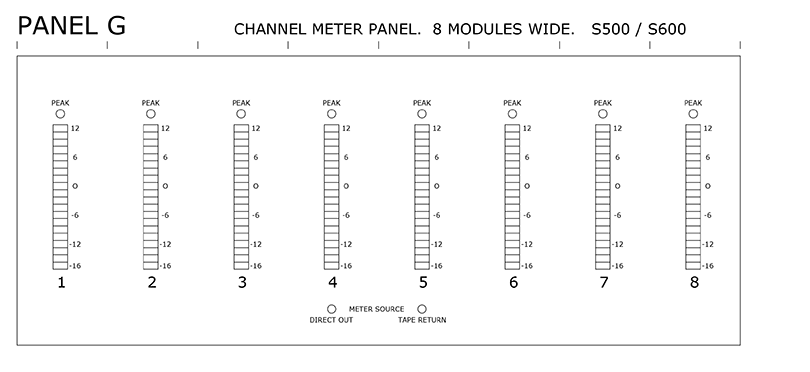

Panel G. Channel Meter Panel.

This panel is used for Mono input channels. • There are 8 LED bargraph meters, each with a peak LED. • Meters have two sources that are centrally selected via a switch on the Master Meter Panel. • Sources are Channel Direct Output & Tape Return. • The Tape Return signal is sourced from the Group Output connector panel. • Direct Out source wiring requires a screened cable soldered directly to each of the channel direct output jack sockets.
